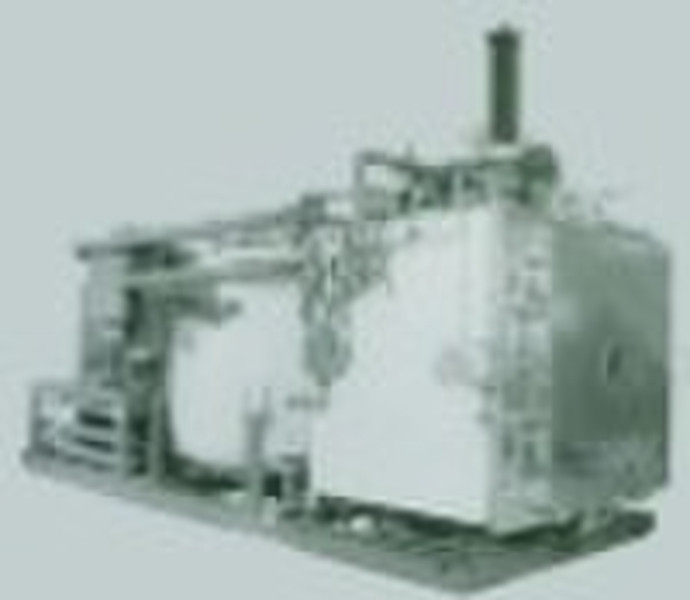

Lyophilizer

Lyophilizer Main technical parameter Structure Standard Technical Parameter Remarks Structure Useful shelf area 3.24m2 Max. Ice capacity 60kg/B Power supply380V/50Hz 3 Phase, 5 wires Power capacity 24KW 22mm Vial 7020 16mm Vial 13608 Cooling water ≥5m3/h(T≤30/P=0.15 0.2Mpa) For cooling system Compressed air ≥0.1m3/min P=0.5 0.8Mpa Cleaning water Capacity ≥100L/MinuterT=80/P≥0.5Mpa Steam consumption ≥60Kg/HourPressure ≥ 0.3MPa Overall Dimensions (L*W*H) 4000×1600×2800mm Overall structure Integrity design(Cubical Chamber and condenser) Isolated with mushroom valve Weight(App.) 3800kg
